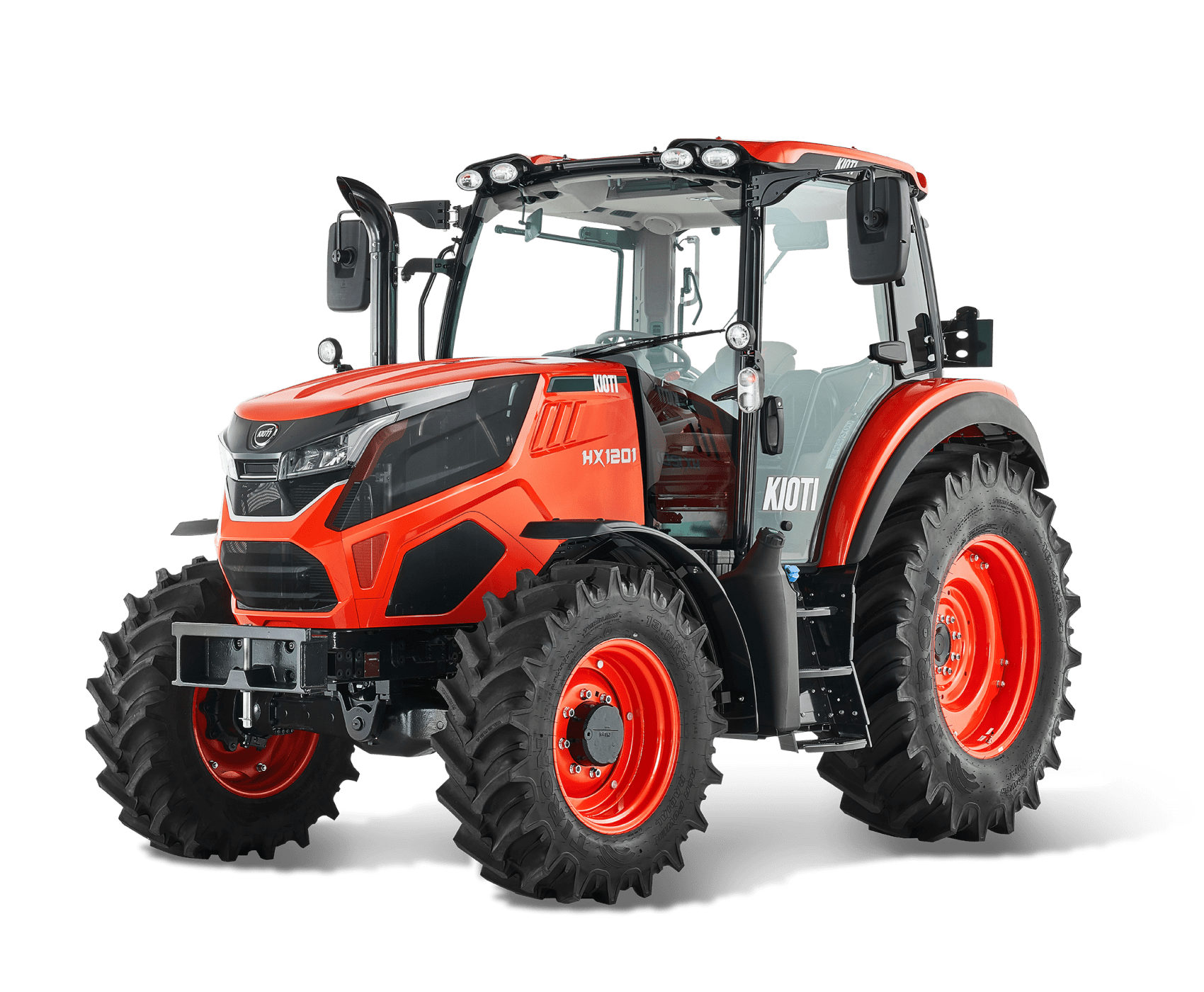

More Power. More Comfort. More Capability.

The HX Series tractors are built to handle the toughest tasks, with incredible engine power and robust features that enhance operator comfort. Equipped with a luxury cab, intuitive controls, and unbeatable durability, the HX Series is perfect for professionals who need both performance and reliability.

Features may include:

Powerful Performance
The HX9010PC comes with a high-performance Daedong® turbocharged engine, providing outstanding power and efficiency to take on heavy-duty tasks with ease.

Climate-Controlled Cab
The deluxe cab with climate control ensures you’re comfortable regardless of the weather conditions, making it ideal for long hours of operation.

Hydrostatic Transmission
The hydrostatic transmission system provides smooth, infinitely variable speed control, giving the operator precise handling and ease of use on all terrains.

Ergonomic Operator Comfort
A fully adjustable suspension seat and ergonomic controls ensure a comfortable ride and easy handling, no matter the task.

Robust Design
Built tough, the HX Series has reinforced construction with a strong chassis and an efficient cooling system to handle even the most demanding conditions.

Enhanced Visibility
The design of the cab and hood improves operator visibility, allowing for safe operation in tight spaces and tricky conditions.

PTO Performance
The PTO system delivers reliable power to all your attachments, with independent and easy-to-engage control for precise operation.

High Capacity Fuel Tank
The large fuel tank provides extended run time, minimizing the need for frequent refueling during long work days.

Premium Features
The HX Series includes advanced features such as a powerful hydraulic system, large-capacity rear lift, and a smooth operating 4WD system.

Specifications

Year: 2024
Manufacturer: KIOTI
Model Name: HX Series
Trim Name: HX9010PC
Generic Type (Primary): Utility
Engine: Daedong® D1105-T
Engine Power: 94.2 hp (70.3 kW)
Rated Engine Speed: 2,600 rpm
Cylinder Liners: 4
Aspiration: Turbocharged
Displacement: 204.9 cu. in. (3,359 cc)

Fuel System

Fuel Type: Diesel

PTO

PTO Type: Independent
Rear PTO Speed: 540 rpm / 1,000 rpm
PTO Power, Rated Engine Speed: 83.6 hp (62.4 kW)

Drivetrain:

No. of Travel Speeds – Forward / Reverse: Variable speed
Transmission Type: Hydrostatic
Clutch: Wet Multi-Disc

Brakes

Brake System Type: Wet Multi Disc

Wheels & Tires

Tires, Front Specification: Tread Ag – Min: 58.3 in. (1,480 mm)
Tires, Rear Specification: Tread Ag – Min: 63.1 in. (1,600 mm)

Operational

Operating Speed:
Min. Travel Speed of Forward @ Engine Rated Speed: 1.2 mph (1.93 km/h)
Max. Travel Speed of Forward @ Engine Rated Speed: 22.4 mph (36.0 km/h)

Hydraulics

Hydraulic Pump: 19.8 gpm (75 L/min)
Pump Type: Gear
Hitch/Type: Category II

Dimensions

Length w/ 3-point hitch: 151.7 in. (3,855 mm)
Width: 76.3 in. (1,940 mm)
Height from Top of ROPS Cab: 106.5 in. (2,705 mm)
Wheelbase: 85.6 in. (2,175 mm)
Ground Clearance: 17.5 in. (445 mm)
Turning Radius w/ Brake: 11.5 ft. (3.5 m)

Capacities

Fuel Tank Capacity: 30 gal. (113.6 L)
Hitch Lift Capacity: 24″ aft of hitch: 5,500 lbs. (2,495 kg)

Weights

Weight: with Ag Tires: 7,325 lbs. (3,320 kg)
